Patchcord, Pigtail & Fanout Assembly

HTL’s patchcord is an optical cable used to connect one electronic or optical device to another for signal routing. Devices of different types (e.g., a switch connected to a computer, or a switch to a router) are connected with patch cords. A patch cord is always fitted with connectors at both ends. Patch cables can be of any color and are usually shorter lengths than other kinds of networking cables because they're meant for "patching" devices together.

Application

  • Telecommunication Networks
  • Local Area Networks
  • CATV Networks
  • Active device termination
  • Data network systems

Features

  • Compliant with IEC and Telcordia
  • Customized Length
  • Different types of connectors
  • Minimum Loss
  • Different fiber types – SM & MM

Parameters

  • Insertion Loss (dB): <0.15 to <0.30
  • Return Loss (dB): >45 to >65
  • Mating Durability: 500 times
  • Temperature Cycling: -400°C ~ +850°C
  • Humidity Cycling: 750°C, RH 95%

Variants

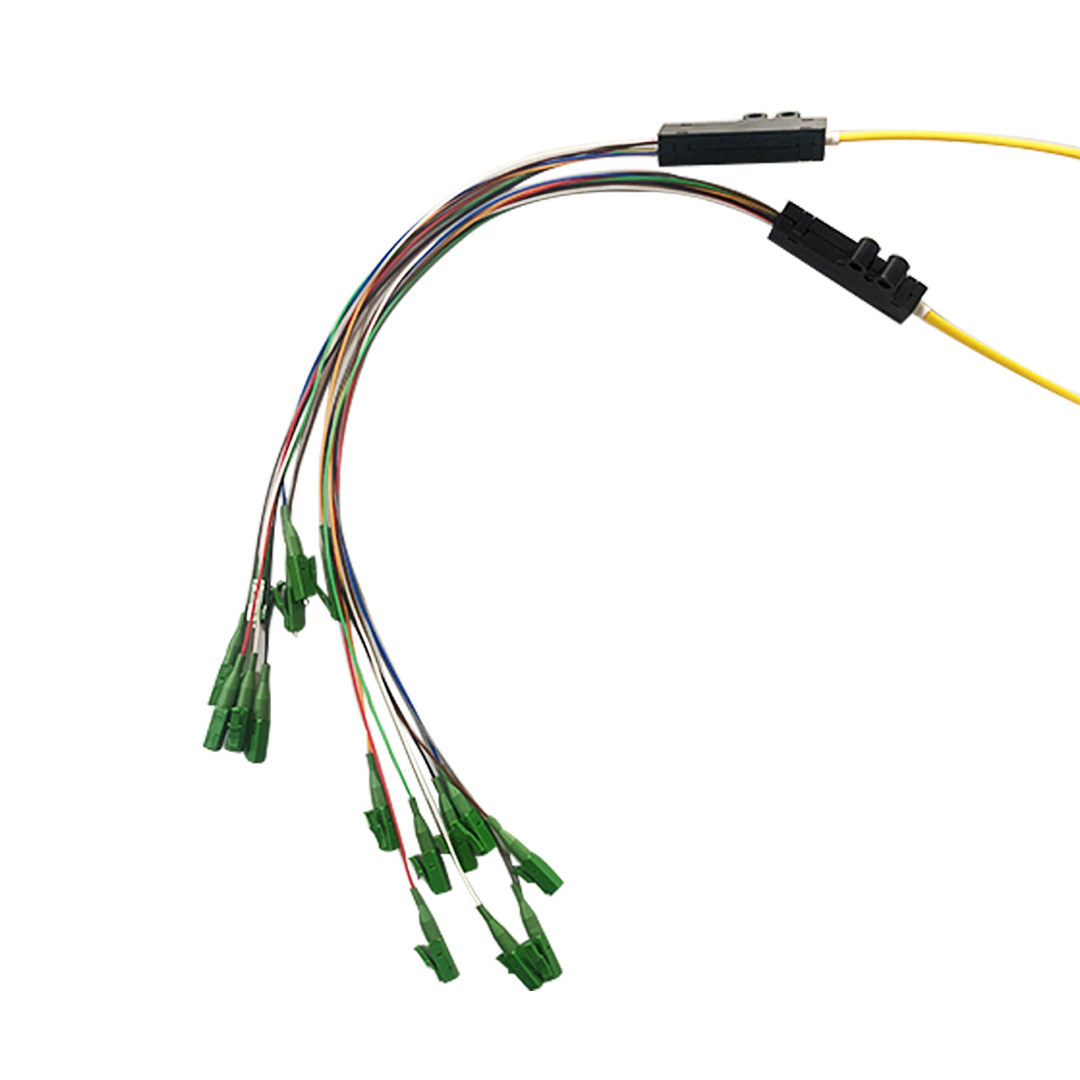

Fan-out Assembly

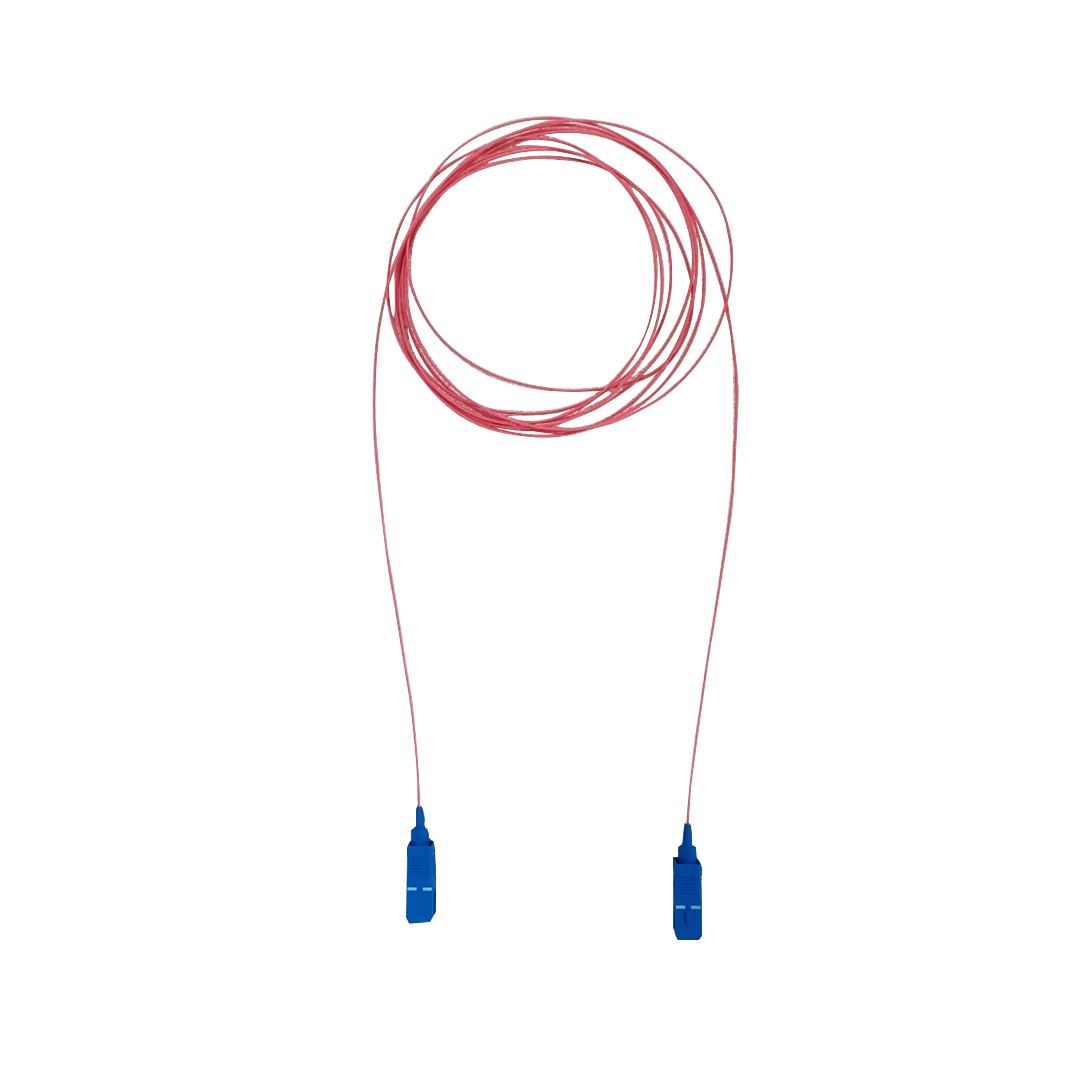

Patch cord 900µ

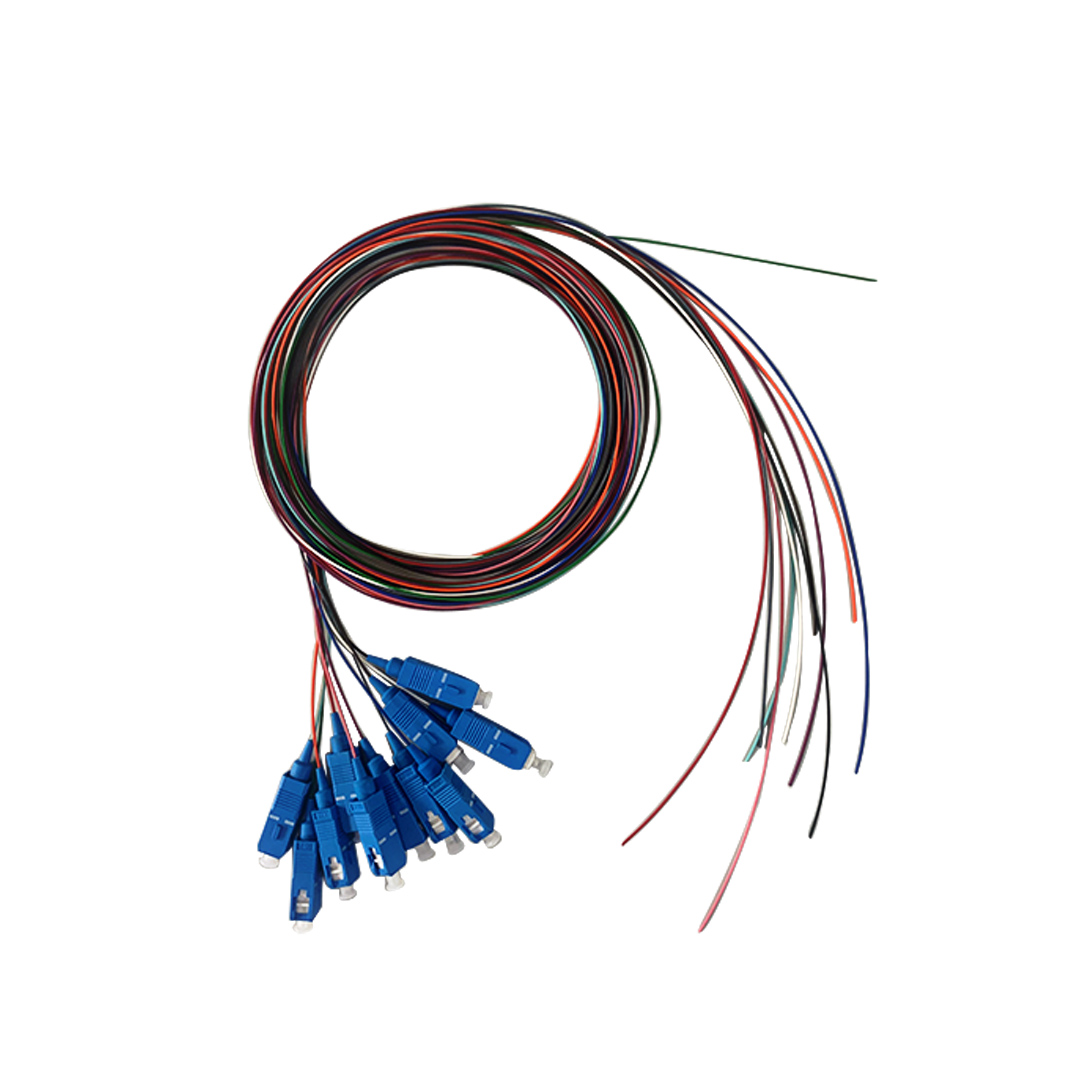

Pigtail
