Optical Splitters

Optical splitters are based on planar light wave circuit technology and high precision alignment. MXN splitters can split or combine light from one or two fibers into N outgoing fibers uniformly over a wide spectral range with ultra low insertion loss and low polarization dependent loss. HTL splitters come from a world-class facility backed by years of Manufacturing experience in fiber optic passive & active modules

Applications

  • FTTH access network.
  • Telecommunication network
  • Data communication network
  • CATV applications

Features

  • Compact Design
  • Low Insertion loss & low PDL
  • High channel counts
  • Wide wavelength range
  • Compliant with IEC & Telcordia
  • Customized packaging & configuration

Parameters

  • Split Parameters: 1:2, 1:4, 1:8, 1:16, 1:32, 1:64 & 1:128
  • Operating Wavelength: 1260 – 1620 nm
  • Insertion Loss: 7.4 dB - 17.5 dB
  • Polarization Dependent loss: 0.2 – 0.3 dB
  • Wide operating temperature range

Variants

Bare Splitter

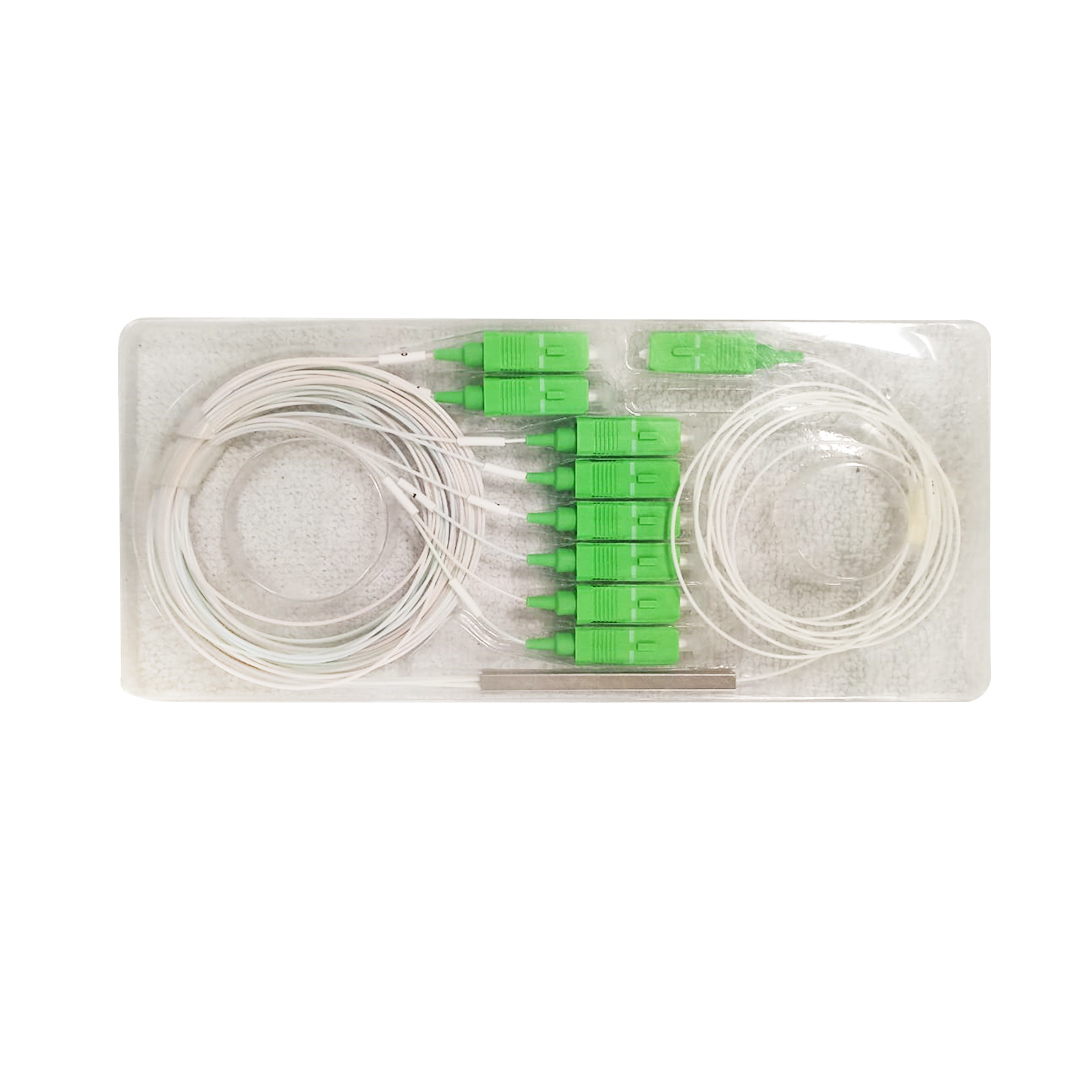

Splitter with Connector

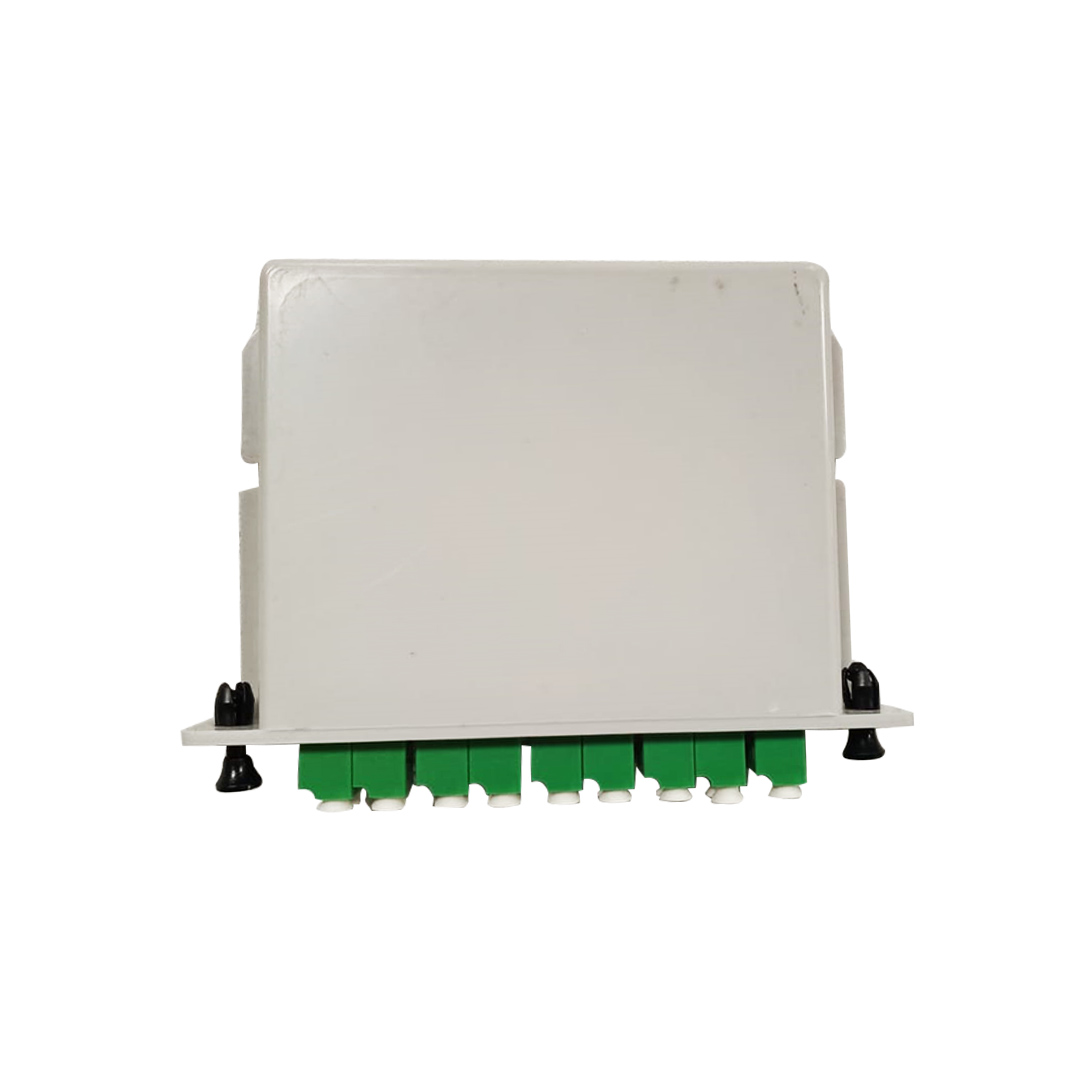

Splitter with ABS Box
Splitter with Metal Box

Related Products

MPO Cable

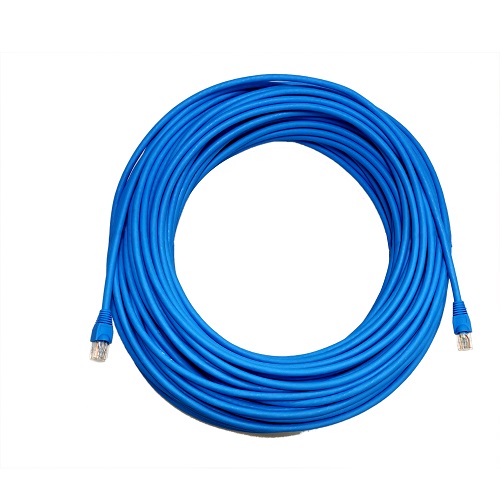

Ethernet Patch Cords
